125kgh Curly Yarn PP Monofilament Extrusion Machine Industrial Filament Extruder

Name: 125kgh Curly Yarn PP Monofilament Extrusion Machine Industrial Filament Extruder
Brand: LEAP
Price: 1 USD

Brand Name : LEAP

Model Number : RS

Certification : CE/ISO90001

Place of Origin : CHANGZHOU,CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 50 sets per year

Delivery Time : 90 working days

Packaging Details : Acceptable customization

material : PP Chips

PLY : 8

screw : 75mm

capacity : 125 kg per hour

texturing : Air type

winder : 24 spindles

Frequce : customized

Voltage : customized

Contact Now

PP Monofilament Extrusion Machine For Curly Yarn used in artificial grass 125kgh

Product Description:

1. 75×33 Extruder:2 sets

(1) Main motor power: 37KW;

(2) Screw diameter: 75mm;

(3) L:D: 33:1; Material of screw: 38CrMoALA

(4) Automatic screen changer: 1 set

2. Quenching tank: 1 set

(1) The tank is made by stainless steel 304.

3. Seven roller stretching unit A, 0-120m/min: 1 Set

(1) Steel roller size: φ270×700×7;

The 7 rollers are made by SS 304 with hard chrome plating.

4. Hot water tank: 1 set

(1) Tank length:3800mm

(2) The water is heated by copper heating tube, the heating power: 48kw,

5. Water suction: 1 set

(1) Fan power:5.5kw×1 set

6. Seven roller stretching unit B: 1 Set

(1) Steel roller size: φ350×700×7.

The 7 rollers are made by SS 304 with hard chrome plating.

7. Waster yarn collector system: 1 set

(1) Motor power: 7.5KW

8. Air texturing machines: 24 ends

Specification for each end:

(1) Gas heating barrel:1 sets

(2) Main conveying pipe:1 set,

9. Conveyer device: 6 sets

(1) 1 set includes 6 working position.

10. Automatic tension feedback winder: 24 spindles

(1) Motor of tension roller:0.5kw

(2) Winding motor:0.25kw

12. Total weight: 25T

Parameter:

Screw diameter	Φ75mm
Raw material	PP chips	Filament size	customized
Capacity	125Kg/H	Filament shape	Curly
Screw L:D	33:1	Stretching unit	2 sets
Screw material	38CrMoALA	Winder	24 spindles
Max linear speed	300m/min	Instillation power	590Kw
Nozzle holes	customized	Overall size	25×25×2.8m

Pictures:

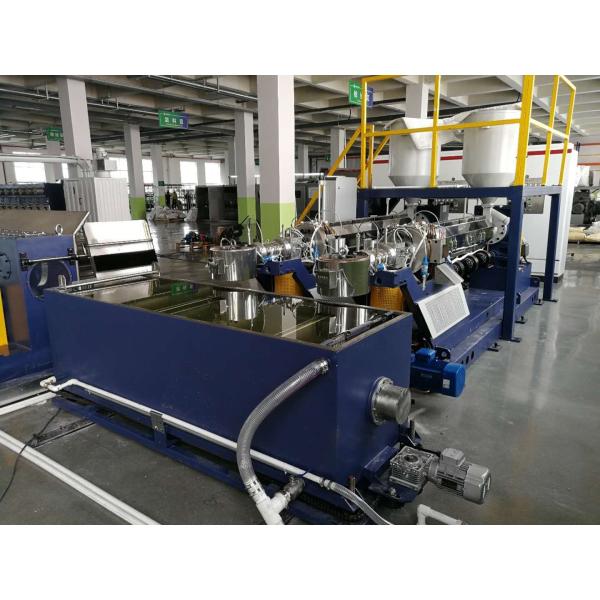

125kgh Curly Yarn PP Monofilament Extrusion Machine Industrial Filament Extruder
